BOBST Die Cutter: NOVACUT 106

BOBST die cutting machine NOVACUT 106 gives you the BOBST ability to die-cut all types of products and materials, but in one productive, ergonomic, beautifully styled and surprisingly affordable package.

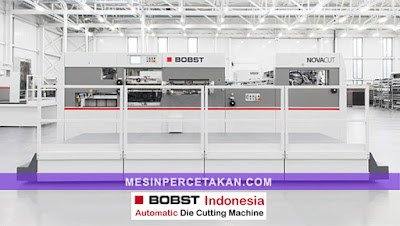

 BOBST die cutter | NOVACUT 106
BOBST die cutter | NOVACUT 106



See specification - BOBST die cutter machine price:

BOBST die cutter | NOVACUT 106


BOBST die cutter | NOVACUT 106

With the new NOVACUT 106 die cutting, start with an automatic die cutting process.


Human machine interface

BOBST die cutting | CUBE 3 panel touchscreen

CUBE3

This latest generation of CUBE, BOBST's operator-machine interface, features revolutionary 'Touch & Set' navigation which makes even the most complex settings completely intuitive, saving valuable time.

Now with a bigger, full color, touch screen CUBE3 gives the operator complete control of the Autoplaten®, from setting and running a job, right through to detailed fault diagnosis.





Suitable for the following industries


Packaging - Folding carton
Packaging - Folding carton - BOBST

Label manufacture
Label manufacture - BOBST

 Commercial Print finishing
 Commercial Print finishing - BOBST







Main processed materials

Paper
Paper - BOBST

Carton board
Carton board - BOBST

Heavy solid board
Heavy solid board - BOBST

Semi-rigid plastics
Semi rigid plastics - BOBST

Corrugated board
Corrugated board - BOBST



BOBST stripping tool

BOBST stripping tool

BOBST waste stripping tool
BOBST waste stripping tool

Pisau Pond BOBST
Pisau Pond BOBST



 Specification BOBST NovaCut-106
specification BOBST NovaCut-106



Specifications

Processed materials (1)
Paper

80 g/m2
Carton board
max 2000 g/m2
Corrugated board (2)
max 4 mm
Capability
Sheet size
min 350  x  400 mm

max 740  x  1060 mm
Speed

8000 s/h
Cutting force

2.6 MN
Converting
Cutting size
max 725  x  1060 mm
Embossing size
max 710  x  1060 mm
Gripper margin

9 to 17 mm
Height of cutting rules

23.8 mm
Pile height
Feeder
max 1400 (1800) mm
Feeder, with Non-Stop
max 1100 (1500) mm
Delivery (3)
max 1100 (1500) mm
Dimensions & weight
Length

5.80 m
Width

4.20 m
Height (4)

2.70 m
Net weight

15 tons

(1) Depending on material properties
(2) Depending on material properties
(3) Heights with maximum machine elevation
(4) Base machine with standard podium
